Escalator toolbox
Helps you create detailed specifications – as well as customized CAD drawings for preliminary planning – for KONE TravelMaster 110, 115 and KONE TransitMaster 120 solutions.

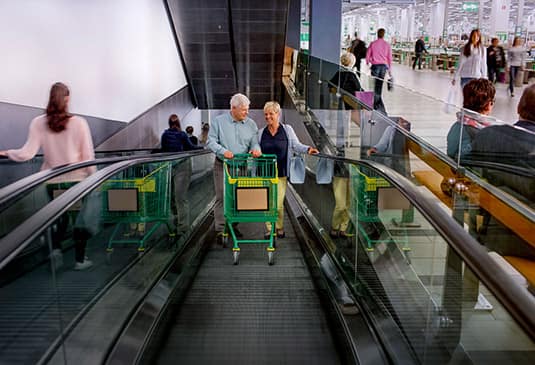

KONE TRAVELMASTER™ 115 AUTOWALK
An inclined autowalk designed for demanding people flow needs
Product information
Description
The KONE TravelMaster™ 115 is an inclined autowalk provides easy and safe access for environments with demanding people flow needs, such as shopping centers, department stores, supermarkets and hypermarkets.
Specifications
- Operational environment: indoor, semi-outdoor
- Speed: 0.5 m/s; 0.4 m/s with inverter
- Inclination: 10º, 11º, 12º
- Pallet width: 800, 1000, 1100 mm
- Vertical rise: up to 8 m
Safety
- Safety is the starting point for every KONE solution. KONE TravelMaster 115 conforms to all local and international safety codes.
- We provide standard safety features including comb plate impact device switches and emergency stop buttons for passengers.
Tools and downloads
Options and highlights
ENERGY-EFFICIENCY
- Smart operational modes and inverter optimize energy consumption under different load conditions
- Long lasting LED lighting is up to 80% more efficient than fluorescent lighting and lasts up to 10 times longer
- The optional regenerative technology cuts power consumption by recycling energy and feeding it back into the system
- The lubrication-free step chain saves oil, reduces chain wear, and decreases fire risk
SAFETY
In addition to the standard safety features, we offer optional safety features including:
- New traffic signalization solutions to provide extra guidance
- Fall-prevention barrier and extended balustrades provide additional passenger protection
- Extensive monitoring options such as KONE Remote Monitoring™ and KONE E-link™ to integrate with your building management systems
DESIGN
High quality visual design for the best possible user experience:
- Innovative and attractive lighting solutions that also improve passenger guidance and safety
- Wide range of design options to create stunning visual effects and perfectly match your building’s architecture
- High quality component finishes and a harmonized look and feel throughout the KONE product portfolio
Contact us for a detailed cost estimate
Related topics
Other escalator solutions
| Product name
| Description (+type)
| Segment
| Maximum rise
| Speed
| Inclination
| Duty cycle
| Environment
|
| TravelMaster™ 110
| escalator | Commercial, retail, hotel, office
| 13 m
| 0.4, 0.5 m/s
| 30°, 35°
| 12-16 hours/day
| Indoor, outdoor, semi-outdoor
|
| TransitMaster™ 120
| escalator | Infrastructure
| 15 m
| 0.4, 0.5, 0.65, 0.75 m/s | 27.3°, 30°, 35° | 20-24 hours/day | Indoor, outdoor
|
| TransitMaster™ 140
| escalator | Infrastructure
| 18 m
| 0.4, 0.5, 0.65, 0.75 m/s | 27.3°, 30° | 20-24 hours/day | Indoor, semi-outdoor |
| TransitMaster™ 165
| horizontal autowalk | Infrastructure, Commercial
| 15-60 m
| 0.4, 0.5, 0.65, 0.75 m/s
| 0-6°
| 20-24 hours/day
| Indoor, semi-outdoor |
| TransitMaster™ 185
| horizontal autowalk | Infrastructure, Commercial
| 15-100 m
| 0.4, 0.5, 0.65, 0.75 m/s
| 0-6°
| 20-24 hours/day
| Indoor, semi-outdoor |
| KONE InnoTrack™
| horizontal autowalk
| Infrastructure
| 15-60 m
| 0.5, 0.65 m/s
| 0°
| 20-24 hours/day
| Indoor |
